1. PTFE wire is an electrical wire that is coated with a material called polytetrafluoroethylene (PTFE).
2. PTFE is known for its excellent resistance to high temperatures, chemicals, and electrical stress, which makes it ideal for use in high-performance
3. Applications such as aerospace, defense, and medical equipment.
4. PTFE wire can be used in harsh environments where other types of wire would not be able to withstand the conditions.
5. It is also known for its excellent flexibility and low friction properties,which makes it easy to install and handle.
Product Features: Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage.
Tinned or silver coated copper FEP insulated stranded shielding cable
AFR-200
Bare Copper wire conductor PTFE film insulated lead wire
AFR-250
Silver plated copper wire conductor PTFE film insulated lead wire
AFP
Bare Copper wire conductor PTFE film insulated screen lead wire
AFP-1
Silver plated copper wire conductor PTFE film insulated screen lead wire
AFRP-200
Bare Copper wire conductor PTFE film insulation shield lead wire
AFRP-250
Silver plated wire copper conductor PTFE film insulation shield lead wire
AFRPF-250, AFPF
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire
Cable Structures:
Nominal Section
(mm2)
Conductor
Construction (No/mm)
Insulation Thickness
(mm)
Outer Diameter
(mm)
D.C. conductor resistance at
20ºC(Ω/km)
Tinned copper
Silver coated copper
0.05
10/0.08
0.3
0.9
383
370
0.06
7/0.10
0.3
0.9
348
339
0.08
7/0.12
0.3
0.96
286
280
0.1
7/0.14
0.3
1.02
157
150
0.12
7/0.15
30/0.07
0.3
1.05
152
145
0.14
7/0.16
19/0.10
0.3
1.08
136
130
0.15
30/0.08
0.3
1.1
111
105
0.2
7/0.02
19/0.12
0.3
1.2
87
82
0.35
19/0.16
0.3
1.4
57
54
0.5
19/0.18
0.3
1.5
40
37.5
0.8
19/0.23
0.32
1.79
24
23
1
19/0.26
0.35
2
21
20
1.2
19/0.28
0.45
2.3
19
18
1.5
19/0.32
0.45
2.5
13
12
2
19/0.37
0.45
2.75
10
9
2.5
37/0.30
0.55
3.2
8
7
3
37/0.32
0.68
3.6
6.8
6.4
Noted:PTFE Wire core No. and specification are not limited to the above regulation,they could be customized.
Company Informations

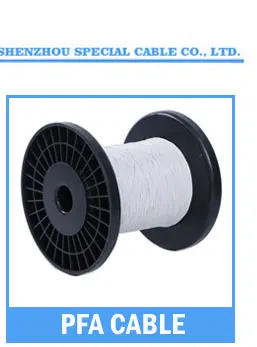

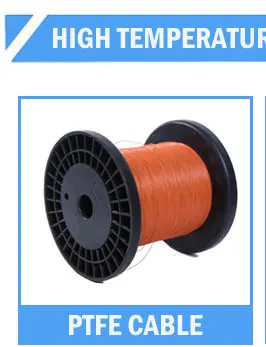

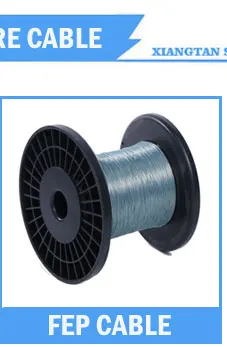

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.
Product Flow
EXHIBITION & VISIT
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India... Also Delegation from Ezeagu Government of Nigeria Visited our factory in 2017, and they became a long time partner with us.
WHY CHOOSE US
PACKING & SHIPPING
FAQ
1).Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China
2).Q:What is your company's strengths?
A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.
3).Q:How do you guarantee your product quality?
A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.
4).Q:What's the warranty of your products?
A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
5).Q:How can I get the samples?
A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
